Static Mixer - Concept Design & CFD Validation Study
Overview
Client wished to design and manufacture an inline static mixer for use in the water treatment industry. Mechanical design of the sub assembly and CFD analysis were conducted, finalising in the manufacturing and installation of the system.
Scope
CAD Modelling
Design iteration
CFD analysis
Prototype production and install
Outcome
Resulted in a validated design concept supported by simulation data carried forward to prototyping and installation by the client.

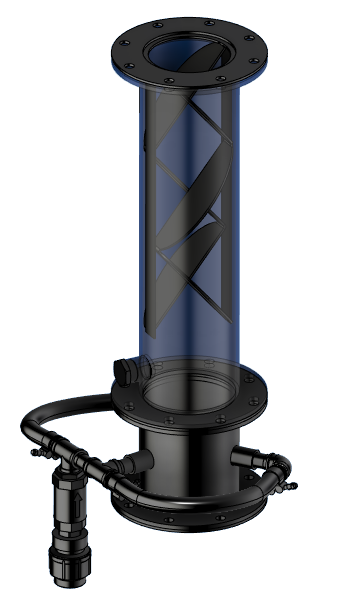

Sub Assembly Model

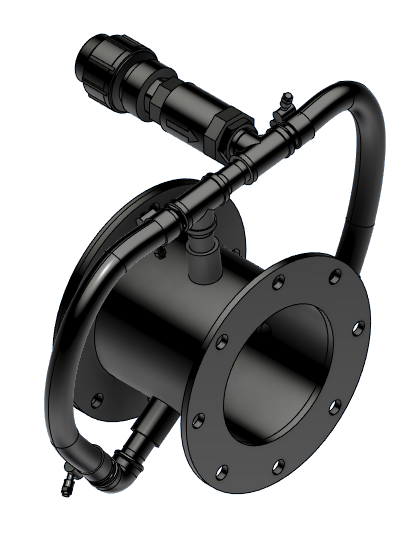

Injection Point

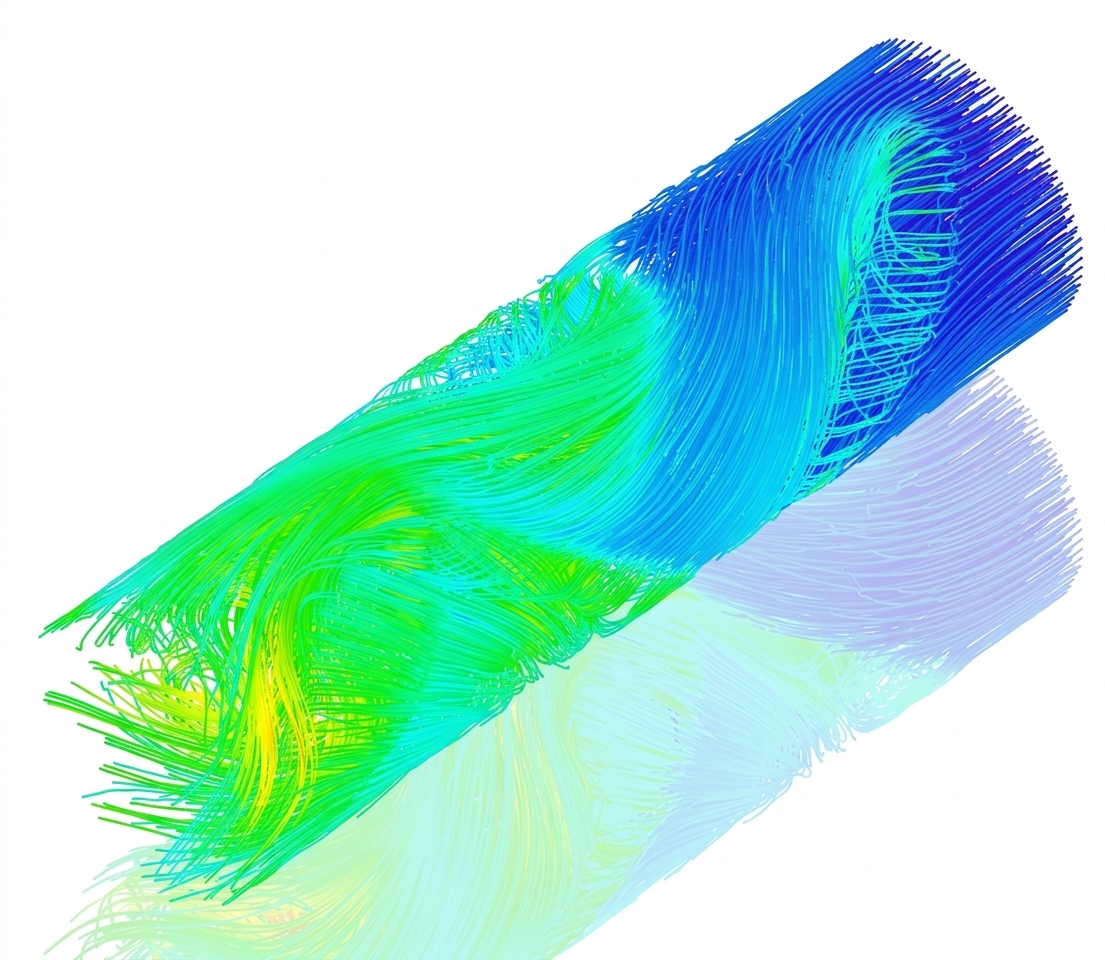

CFD Analysis
